5 Star Speed Remote E-Core Ignition Coil, 50,000 Volt High Performance Square Coil, Red Billet Aluminum Housing, Epoxy Filled, Male Terminal

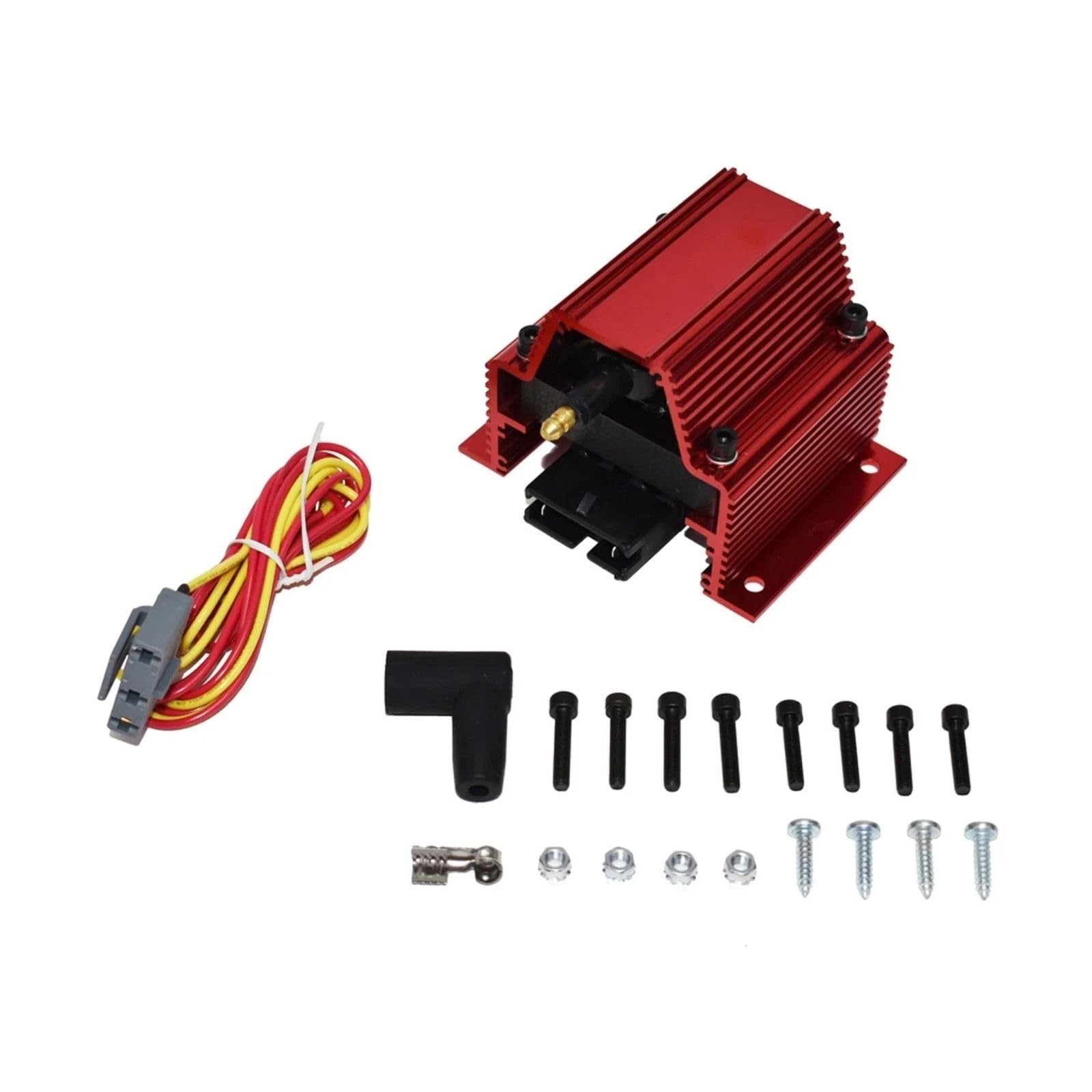

5 Star Speed Remote E-Core High Performance Ignition Coil

Upgrade your ignition system with this high-performance remote E-core ignition coil from 5 Star Speed. Engineered to deliver up to 50,000 volts of output, this ignition coil is designed to provide strong spark energy for reliable engine performance in street and performance applications.

The square E-core design promotes efficient heat dissipation while offering flexible mounting options on the firewall, fender, or other suitable locations. The durable red billet aluminum housing and epoxy-filled construction help withstand vibration and demanding operating conditions.

Features:

• 50,000-volt maximum output
• Square E-core design
• Billet aluminum housing
• Epoxy-filled internal construction
• Male coil wire attachment
• Includes plug wire connector for a clean installation

Specifications:

• Coil style: E-core
• Primary resistance: 0.35 ohms
• Secondary resistance: 8,000 ohms
• Maximum voltage: 50,000 volts
• Spark duration: 200 microseconds
• Peak current: 260 milliamperes
• Turns ratio: 100:1
• Inductance: 7.0 mH
• Coil shape: Square
• Housing material: Billet aluminum
• Coil wire attachment: Male terminal

Important: Please verify compatibility with your vehicle, ignition control box, and existing ignition system before ordering. Professional installation is recommended.
